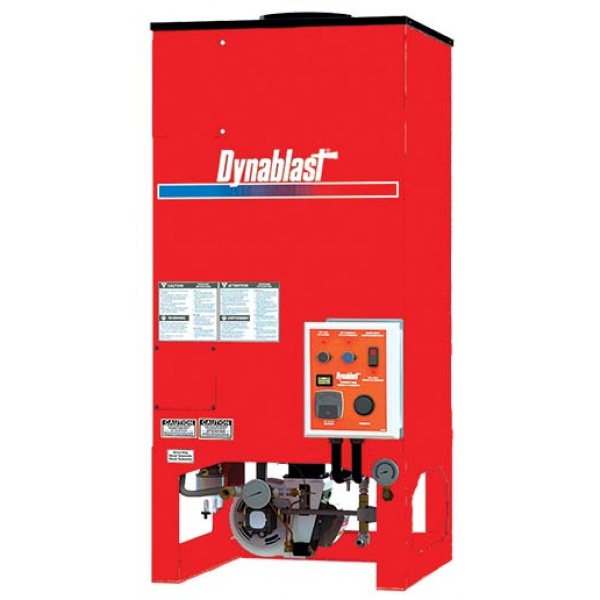

Dynablast HV700F Hydrovac Hot Water and Steam Heater
3,500 PSI @ 7.0 GPM – 700,000 BTU 120 Volt Fuel Burner
Please Note: The product images shown are for illustration purposes only and may not be an exact representation of the product.
More Information
Dynablast HV700F Hydrovac Hot Water and Steam Heater
3,500 PSI @ 7.0 GPM – 700,000 BTU 120 Volt Fuel Burner
- Wired Remote Box
- Steam Control
- High Pressure & Steam Operating Valves
- Momentary Test, Flow & Thermostat
- Fuel use # 1 or # 2
- 5.03 GPH Fuel Consumption
- Fuel Pressure Gauge included
- Coil Water Discharge Bottom
- Assembled in Canada
Specifications
| Operating Pressure: | 3,500 PSI |
| Heat Rise: | 7.0 @ 170°F |
| BTU: | 700,000 |
| Burner Fuel: | No. 1 or No. 2 |
| Burner: | 12 V |
| Coil: | 3/4″ Schedule 80 |
| Dimensions: | 26.5″ x 26.5″ x 58″ |
| Weight: | 790 LBS |
Details & Specifications
| Weight | 790 lbs |
|---|---|
| Dimensions | 26.5 × 26526.58 × 26526.558 in |
| PSI |
3500 |
| Burner (Voltage) | |
| BTU | |
| Heat Rise | |
| Burner Fuel | |
| Coil | |
| Brand | |
| Model |
HV700F |
